Tutorial 4: Application on osmFISH Somatosensory Cortex dataset.
In this vignette, We performed PROST on the processed Somatosensory Cortex dataset from (Codeluppi, S. et al. 2018) generated by osmFISH to evaluate the robustness of PROST about data dropoff.
The original data can be downloaded from google drive.
1.Load PROST and its dependent packages
import numpy as np
import scanpy as sc
import os
import pandas as pd
import warnings
warnings.filterwarnings("ignore")
import matplotlib.pyplot as plt
import sys
from sklearn import metrics
import PROST
PROST.__version__
>>> ' 1.1.2 '
2.Set up the working environment and import data
# the location of R (used for the mclust clustering)
ENVpath = "your path of PROST_ENV" # refer to 'How to use PROST' section
os.environ['R_HOME'] = f'{ENVpath}/lib/R'
os.environ['R_USER'] = f'{ENVpath}/lib/python3.7/site-packages/rpy2'
# init
SEED = 818
PROST.setup_seed(SEED)
# Set directory (If you want to use additional data, please change the file path)
rootdir = 'datasets/osmFISH/'
input_dir = os.path.join(rootdir)
output_dir = os.path.join(rootdir, 'results/')
if not os.path.isdir(output_dir):
os.makedirs(output_dir)
# Read data
adata = sc.read_loom(input_dir+'osmFISH_SScortex_mouse_all_cells.loom')
adata.obsm['spatial'] = adata.obs[['X','Y']].values
# Excluding cells
used_cells = adata.obs.Region!='Excluded'
adata = adata[used_cells,]
3.Plot annotation and save data
# Plot annotation
plt.rcParams["figure.figsize"] = (5,5)
sc.pl.embedding(adata, basis="spatial", color="Region",size = 15, show=False, title='annotation')
plt.axis('off')
plt.gca().set_aspect('equal', 'box')
plt.savefig(output_dir+"annotation.png", dpi=600, bbox_inches='tight')
# Save data
adata.write_h5ad(output_dir+"/used_data.h5")
>>> Trying to set attribute `.obs` of view, copying.
>>> ... storing 'ClusterName' as categorical
>>> Trying to set attribute `.obs` of view, copying.
>>> ... storing 'Region' as categorical
>>> Trying to set attribute `.var` of view, copying.
>>> ... storing 'Fluorophore' as categorical
Clustering on original data
# Set the number of clusters
n_clusters = 11 # same as annotation
1.Expression data preprocessing
PROST.setup_seed(SEED)
# Read data
adata = sc.read(output_dir+"/used_data.h5")
sc.pp.normalize_total(adata)
sc.pp.log1p(adata)
2.Run PROST clustering
PROST.run_PNN(adata,
platform="osmFISH",
min_distance = 800,
init="mclust",
n_clusters = n_clusters, # same as annotation
tol = 5e-3,
SEED=SEED,
lr = 0.1,
max_epochs = 100)
>>> Calculating adjacency matrix ...
>>> Running PCA ...
>>> Laplacian Smoothing ...
>>> Initializing cluster centers with mclust, n_clusters known
>>> Epoch: : 102it [02:56, 1.73s/it, loss=0.18372384]
>>> Clustering completed !!
3.Post-process cluster result
adata = PROST.cluster_post_process(adata,
platform='osmFISH',
min_distance = 1000,
key_added = "pp_clustering",
run_times = 3)
>>> Post-processing for clustering result ...
>>> Refining clusters, run times: 1/3
>>> Refining clusters, run times: 2/3
>>> Refining clusters, run times: 3/3
4.Calcluate ARI
ARI = metrics.adjusted_rand_score(adata.obs["Region"], adata.obs["pp_clustering"])
print("pp_clustering_ARI =", ARI)
>>> pp_clustering_ARI= 0.6766793390568708
5.Save clustering result
pp_clustering = adata.obs["pp_clustering"]
embedding = adata.obsm["PROST"]
adata.write_h5ad(output_dir + f"/PNN_result.h5")
pp_clustering.to_csv(output_dir + f"/pp_clusters.csv",header = False)
np.savetxt(output_dir + f"/embedding.txt",embedding)
6.Plot clustering result
adata=sc.read(output_dir + f"/PNN_result.h5")
plt.rcParams["figure.figsize"] = (5,5)
sc.pl.embedding(adata, basis="spatial", color="pp_clustering", size = 15, show=False, title='pp_clustering')
plt.axis('off')
plt.gca().set_aspect('equal', 'box')
plt.savefig(output_dir + f"/pp_clustering.png", dpi=600, bbox_inches='tight')
Clustering on simulated data (drop out rate=0.05)
# Set the number of clusters
n_clusters = 11 # same as annotation
dropout = 0.05 # drop out rate=0.05
adata = PROST.simulateH5Data(adata, rr = dropout)
adata.write_h5ad(output_dir + f"/used_data_drop={dropout}.h5")
>>> dropout rate = 0.05
>>> Done! Remain 105115/110647
1.Expression data preprocessing
adata = sc.read(output_dir + f"/used_data_drop={dropout}.h5")
PROST.setup_seed(SEED)
sc.pp.normalize_total(adata)
sc.pp.log1p(adata)
2.Run PROST clustering
PROST.run_PNN(adata,
platform="osmFISH",
min_distance = 700,
init="mclust",
n_clusters = n_clusters,
tol = 5e-3,
SEED=SEED,
lr = 0.1,
max_epochs = 100)
>>> Calculating adjacency matrix ...
>>> Running PCA ...
>>> Laplacian Smoothing ...
>>> Initializing cluster centers with mclust, n_clusters known
>>> Epoch: : 102it [02:54, 1.71s/it, loss=0.19401526]
>>> Clustering completed !!
3.Post-process cluster result
adata = PROST.cluster_post_process(adata,
platform = 'osmFISH',
min_distance = 1000,
key_added = "pp_clustering",
run_times = 3)
>>> Post-processing for clustering result ...
>>> Refining clusters, run times: 1/3
>>> Refining clusters, run times: 2/3
>>> Refining clusters, run times: 3/3
4.Calcluate ARI
ARI = metrics.adjusted_rand_score(adata.obs["Region"], adata.obs["pp_clustering"])
print("pp_clustering_ARI =", ARI)
>>> pp_clustering_ARI = 0.6799485227477202
5.Save clustering result
pp_clustering = adata.obs["pp_clustering"]
embedding = adata.obsm["PROST"]
if not os.path.isdir(output_dir + f"/dropout={dropout}/"):
os.makedirs(output_dir + f"/dropout={dropout}/")
pp_clustering.to_csv(output_dir + f"/dropout={dropout}/pp_clusters.csv", header = False)
adata.write_h5ad(output_dir + f"/dropout={dropout}/PNN_result.h5")
np.savetxt(output_dir + f"/dropout={dropout}/embedding.txt",embedding)

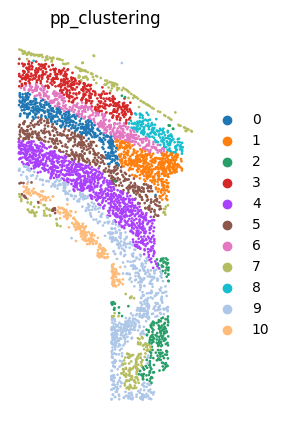

6.Plot clustering result
adata=sc.read(output_dir + f"/dropout={dropout}/PNN_result.h5")
plt.rcParams["figure.figsize"] = (5,5)
sc.pl.embedding(adata, basis="spatial", color="pp_clustering", size = 15, show=False, title='pp_clustering')
plt.axis('off')
plt.gca().set_aspect('equal', 'box')
plt.savefig(output_dir+f"/dropout={dropout}/pp_clustering.png", dpi=600, bbox_inches='tight')
