Tutorial 5: Application on simulated osmFISH Somatosensory Cortex dataset.

In this vignette, We performed PROST on the simulated Somatosensory Cortex dataset from (Andrew Cheng. et al. 2023) to evaluate the robustness of PROST about simulated data.
The original data can be downloaded from google drive.

---

1.Load PROST and its dependent packages

import numpy as np
import scanpy as sc
import os
import pandas as pd
import warnings
warnings.filterwarnings("ignore")
import matplotlib.pyplot as plt
import sys
from sklearn import metrics
import PROST
PROST.__version__


>>> ' 1.1.2 '

2.Set up the working environment and import data

# the location of R (used for the mclust clustering)
ENVpath = "your path of PROST_ENV"            # refer to 'How to use PROST' section
os.environ['R_HOME'] = f'{ENVpath}/lib/R'
os.environ['R_USER'] = f'{ENVpath}/lib/python3.7/site-packages/rpy2'

# init
SEED = 818
PROST.setup_seed(SEED)

# Set directory (If you want to use additional data, please change the file path)
rootdir = 'datasets/osmFISH/'

input_dir = os.path.join(rootdir)
output_dir = os.path.join(rootdir, 'results/')
if not os.path.isdir(output_dir):
    os.makedirs(output_dir)

# Read data
adata = sc.read_loom(input_dir+'osmFISH_SScortex_mouse_all_cells.loom')

# Read used cells from oringal data
used_cells = adata.obs.Region != 'Excluded'
used_cells = pd.DataFrame(used_cells).reset_index()
used_cell_ID = used_cells[used_cells['Region']]['CellID']
used_cell_ID = list(used_cell_ID)

# Filter oringal data
adata = adata[adata.obs.Region!='Excluded',]

# Read simulated data
simcount = pd.read_csv(input_dir + "/Dataset5_counts1.txt",delim_whitespace=True)
simcount.columns = [str(x)[5:] for x in simcount.columns]
sim_adata = sc.AnnData(simcount.T)

# Read simulated annotation
sim_annotation = pd.read_csv(input_dir + "/Dataset5_true_cl1.csv",index_col=0)
sim_adata.obs['annotation'] = sim_annotation.values
sim_adata.obs['annotation'] = sim_adata.obs['annotation'].astype('category')

# Filter simulated data
for i in sim_adata.obs_names:
    if i in used_cell_ID:
        sim_adata.obs.loc[i,'keep'] = True
sim_adata.obs['keep'] = sim_adata.obs['keep'].fillna(False)
sim_adata = sim_adata[sim_adata.obs.keep,:]

# Read location information from oringal data
sim_adata.obsm['spatial'] = adata.obs[['X','Y']].values

# Save simulated adata
sim_adata.write_h5ad(output_dir + "sim_adata.h5")

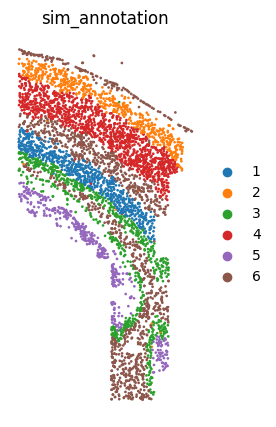

3.Plot annotation

# Plot simulated annotation
adata = sc.read(output_dir + "sim_adata.h5")
plt.rcParams["figure.figsize"] = (5,5)
sc.pl.embedding(adata, basis="spatial", color="annotation", size = 15,  show=False, title='sim_annotation')
plt.axis('off')
plt.gca().set_aspect('equal', 'box')
plt.savefig(output_dir+"sim_annotation.png", dpi=600, bbox_inches='tight')

---

Clustering on original data

# Set the number of clusters
n_clusters = 6     # same as annotation

1.Expression data preprocessing

PROST.setup_seed(SEED)
adata = sc.read(output_dir + "sim_adata.h5")

sc.pp.normalize_total(adata)
sc.pp.log1p(adata)

2.Run PROST clustering

PROST.run_PNN(adata,
        platform="osmFISH",
        min_distance = 275,
        init="mclust",
        n_clusters = n_clusters,
        tol = 5e-3,
        SEED=SEED,
        max_epochs = 100,
        post_processing = True,
        pp_run_times = 1)


>>> Calculating adjacency matrix ...
>>> Running PCA ...
>>> Laplacian Smoothing ...
>>> Initializing cluster centers with mclust, n_clusters known
>>> Epoch: : 102it [02:36,  1.54s/it, loss=0.14192994]
>>> Clustering completed !!
>>> Post-processing for clustering result ...
>>> Refining clusters, run times: 1/1

3.Calcluate ARI

ARI = metrics.adjusted_rand_score(adata.obs["annotation"], adata.obs["pp_clustering"])
print("clustering_ARI=", ARI)


>>> clustering_ARI= 0.9041096401232858

4.Save clustering result

pp_clustering = adata.obs["pp_clustering"]
embedding = adata.obsm["PROST"]

pp_clustering.to_csv(output_dir + "pp_clustering_sim.csv",header = False)
adata.write_h5ad(output_dir + "PNN_result_sim.h5")
np.savetxt(output_dir + "embedding_sim.txt",embedding)

5.Plot clustering result

adata = sc.read(output_dir + "PNN_result_sim.h5")

#
plt.rcParams["figure.figsize"] = (5,5)
sc.pl.embedding(adata, basis="spatial", color="pp_clustering", size = 15, show=False, title='pp_clustering_sim')
plt.axis('off')
plt.gca().set_aspect('equal', 'box')
plt.savefig(output_dir+"pp_clustering_sim.png", dpi=600, bbox_inches='tight')

---
